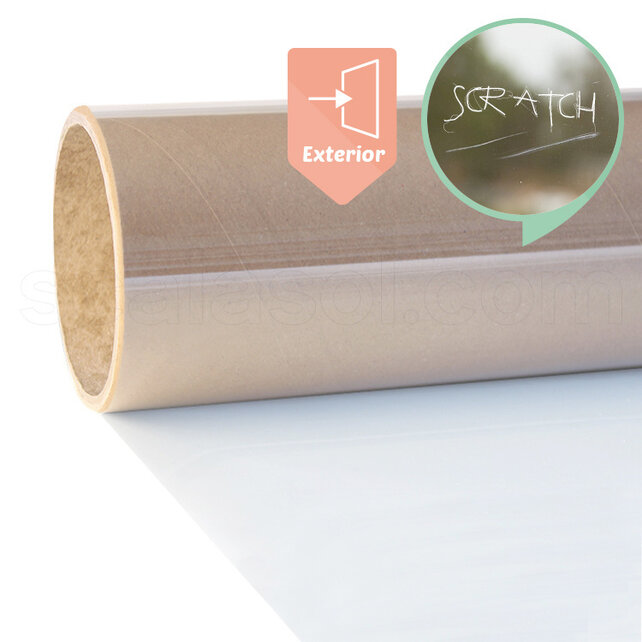

SCALASOL® Anti scratch window film ORREX for exterior application
Pros and cons
ORREX anti scratch film protects your windows against abrasion caused by cat or dog claws- It is not visible on the glass, because ORREX film is transparentt
- Protects your windows against certain forms of vandalism such as keying
- The glass is held together when broken, so there is no danger of shards flying around
- Easy to apply yourself using our recommended tools
Barely blocks infrared radiation (heat transfer)- Not suitable for textured glass, such as patterned or wired glass
Description ORREX
Short description
As a pet owner, you are probably familiar with this sight: a cat or dog clawing at the window with its claws. Your pet’s sharp claws can leave irreparable abrasions in the pane. However, you can prevent such scratch marks with anti scratch film. Anti scratch film ORREX must be applied to the outside of the pane, to give the glass a decent layer of protection. There is no need to replace the pane if a dog or cat leaves marks on it: all you need to do is remove the film from the window, because the abrasions are in the film rather than in the glass itself. This will save you the considerable expense of a new pane of glass. Are you looking to protect your windows against things like vandalism, such as objects being drawn along the glass? In such situations, glass protection film offers the perfect solution. Our window protection film is 120 microns thick, so it is practically impossible to damage the glass through the film.
Application
Our window protection film is transparent and consequently does not change the visibility or daylight, either from inside or outside. That is one of the reasons why window protection film can be used for historic and listed buildings! This film is used in public transport, in vehicles like buses, trains, trams and metro carriages, as well as in buildings. Unfortunately, people deliberately scratch glass far too often. Protect your windows from this form of vandalism. Besides protecting against scratching, ORREX film also protects against loose shards if the glass is broken. The film holds the shards of glass together, so they do not come loose and injure passengers or passers-by, so this safety film actually has a two-fold effect.
Anti-scratch film serves as an extra protection against scratches/vandalism. SCALASOL® can never be held liable for glass damage and the resulting costs.
Adhesion through an adhesive layer-
The ORREX adheres to the glass using an adhesive layer – a mounting method in which the film bonds firmly to the glass with a thin layer of adhesive. This ensures a durable and stable installation. The ORREX can later be removed using the SCALASOL® TO-REMOVE removal kit for window films. After removal, the glass returns to its original, undamaged condition.
Order ORREX window film cut-to-size, in a standard size or as a full roll
Various options
Thanks to our unique cut-to-size module, you can order ORREX film cut-to-size. You will find that option under the tab 'Cut-to-size'. You can order ORREX to your exact measurements, down to the last millimetre. However, if you prefer to order ORREX in a standard size, you will find the options under the tab 'Standard size'. If you are working on a large project and would like to order a whole role of ORREX film, go to the tab 'Full roll'. The tabs are on this product page.
Application
Preparation
Before applying the ORREX, you must carry out the necessary preparations. The glass should be thoroughly cleaned using SCALASOL® TO-PREPARE and the SCALASOL® glass scraper.
Application on the outside of the glass
The ORREX is applied to the exterior side of the window. It is suitable for all types of flat glass, including laminated safety glass, Low-E glass, and triple glazing.
Application difficulty level
- Very easy
Easy- Moderate
- Difficult
Required Tools
The ORREX can be easily applied by yourself using our application tools. The SCALASOL® Felt Squeegee and the SCALASOL® TO-MOVE water additive are essential for a perfect application of the ORREX. Before applying the window film, the glass must be thoroughly cleaned. For this, you can use our glass cleaner SCALASOL® TO-PREPARE.
SCALASOL®
Felt Squeegee
Essential €6,99 + Add
SCALASOL®
TO-MOVE
Essential €6,99 + Add
SCALASOL®
TO-PREPARE
Optional
€7,99 + Add
Technical Specifications
| |
Visible light transmission (VLT) |
91% |
 |
| |
Visible light rejection (VLR) |
9% |
|
| |
* The light measurements (VLT & VLR) were performed using laboratory equipment and are based on monochromatic light. However, it is important to emphasise that these results should be interpreted differently in practical use. Therefore, below we provide a realistic indication of light transmission in practical applications on a bright, sunlit summer day.
|
|
| |
Visible Light Transmission (91% VLT) indication |
|
Bright, sunlit summer day |
|
|
Average bright daylight |
|
|
Daylight on an overcast summer day |
|
|
Fully overcast winter day |
|
|
Twilight |
|
| |
Reflection of external visible light |
9% |
|
| |
Reflection of internal visible light |
9% |
|
| |
Reduction of infrared radiation |
9% |
|
| |
Transmission of infrared radiation |
91% |
|
| |
Solar energy reflection |
10% |
|
| |
Solar energy absorption |
8% |
|
| |
Solar energy transmission |
82% |
|
| |
Total solar energy rejected |
17% |
|
| |
Single glazing |
|
|
Exterior side |
| |
Double glazing |
|
|
Exterior side |
| |
Tempered glass |
|
|
Exterior side |
| |
Tinted glass |
|
|
Exterior side |
| |
Laminated glass |
|
|
Exterior side |
| |
Gas-Filled Double glazing - Low E |
|
|
Exterior side |
| |
Triple glazing |
|
|
Exterior side |
| |
Patterned glass / Textured glass |
|
|
Not suitable |
| |
Plexiglass / Acrylic glass |
|
|
Not suitable |
| |
Polycarbonate / Multiwall sheet |
|
|
Not suitable |
| |
Colour: Crystal-clear transparency |
| |
Adhesion: Self-adhesive (with glue layer) |
| |
Scratch-resistant surface & easy to clean |
| |
Application: Exterior side of the glass (outdoor) |
| |
Warranty & Expected Lifespan |
| |
Shipping Insurance: Fully insured door-to-door transport – at no extra cost |
| |
Manufacturer’s Warranty: 2 years for vertical installation and 1 year for horizontal installation |
| |
Expected Lifespan: 8–10 years for vertical installation and 3–5 years for horizontal installation |
| |
* The indicated lifespan is an estimate and may vary depending on the specific situation and conditions. Factors such as sun exposure, ventilation, angle of installation, condition of the glass, maintenance and cleaning, and especially the method of application can all influence the lifespan. If the window film is not applied cORREXectly, its lifespan may be significantly reduced.
|
|
|
The information on this page is for reference only and not legally binding. SCALASOL® reserves the right to modify the composition of its products at any time. Please refer to our warranty terms and general conditions for more information.
|
