SCALASOL® Safety Window Film QS4E for exterior application
Pros and cons
QS4 safety film is officially certified (P2A / DIN EN 12600) by MPA-NRW in Germany- It is not visible on the glass, because QS4E film is transparent
- QS4 is frequently used in the food industry and in daycare centers
- The glass is held together when broken, so there is no danger of shards flying around
- Easy to apply yourself using our recommended tools
Barely blocks infrared radiation (heat transfer)- Not suitable for textured glass, such as patterned or wired glass
Description QS4E
Short description

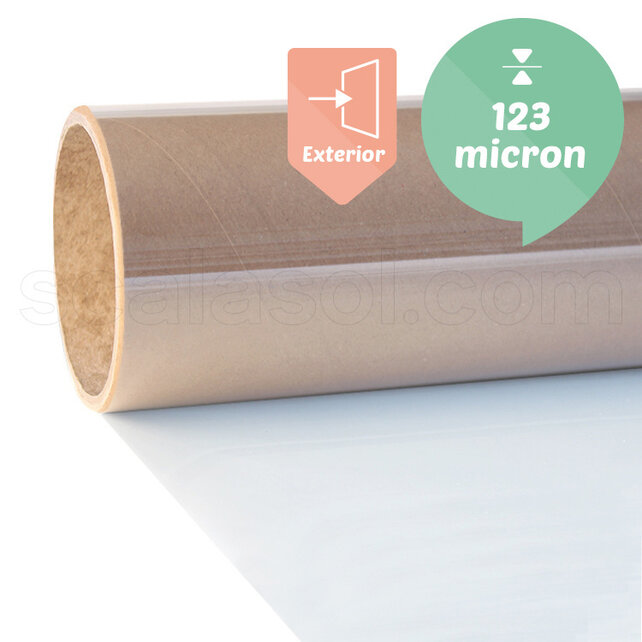

The transparent fall-through protection window film for exterior use is the ideal solution to prevent or reduce injuries in the event of an impact on the glass, for example due to falling or colliding. Rigid anti shatter glass film holds the glass together if the pane is cracked, so no glass shards come loose. In other words, safety film is extremely suitable for the food industry, because splinters of broken glass will never be scattered around. It also means that this kind of shatterproof film for windows is popular in day-care centres, schools, club canteens and other areas in which injuries could be caused if a glass pane is broken. This film has a thickness of 123 microns, so it is easy to apply to the glass yourself. The film is not just a security solution, it also blocks 99% of the harmful UV radiation in sunlight that enters your home through the window. In other words, it prevents your furnishings and household goods from fading.
Application
This anti shatter glass film is transparent and consequently does not change the visibility or amount of daylight, either from inside or outside. The film does not alter the architectural features of a building, so this film can be used in historic or listed buildings. Another advantage is that this film blocks out harmful UV rays, so it will stop your furnishings and furniture from fading. Because the fall protection window film complies with the requirements of standard EN12600 (Body Impact Resistance), your existing glass becomes significantly safer after the safety film is applied, helping to prevent injuries or the release of loose shards. Our shatter proof film for windows is formally classified in the 2B2 DIN EN 12600 class, certification issued by the testing laboratory for safety glass at MPA-NRW. The official certification for our safety window film can be found at the bottom of this page. QS4E film protects your surroundings from injury caused by glass shards. In addition, QS4E film ensures that your manufacturing line does not need to shut down if glass is broken in a food production hall.
The QS4E safety film provides additional protection against injury. SCALASOL® can never be held liable for glass breakage, personal injury, or any resulting costs.
Regulations regarding safety glass-
In public buildings such as shops, schools, or offices, the use of break-resistant glass or safety film is often required. In particular, glass surfaces below a height of 1 meter as well as glass doors must be equipped in a way that prevents injuries in the event of glass breakage. The applicable standard in this context is the European norm EN 12600, which classifies the impact resistance of glass.
Order QS4E window film cut-to-size, in a standard size or as a full roll
Various options
Thanks to our unique cut-to-size module, you can order QS4E film cut-to-size. You will find that option under the tab 'Cut-to-size'. You can order QS4E to your exact measurements, down to the last millimetre. However, if you prefer to order QS4E in a standard size, you will find the options under the tab 'Standard size'. If you are working on a large project and would like to order a whole role of QS4E film, go to the tab 'Full roll'. The tabs are on this product page.
Application
Preparation
Before applying the QS4E, you must carry out the necessary preparations. The glass should be thoroughly cleaned using SCALASOL® TO-PREPARE and the SCALASOL® glass scraper.
Application on the outside of the glass
The QS4E is applied to the exterior side of the window. It is suitable for all types of flat glass, including laminated safety glass, Low-E glass, and triple glazing.
Application difficulty level
- Very easy
Easy- Moderate
- Difficult
Required Tools
The QS4E can be easily applied by yourself using our application tools. The SCALASOL® Felt Squeegee and the SCALASOL® TO-MOVE water additive are essential for a perfect application of the QS4E. Before applying the window film, the glass must be thoroughly cleaned. For this, you can use our glass cleaner SCALASOL® TO-PREPARE.
SCALASOL®
Felt Squeegee
Essential €6,99 + Add
SCALASOL®
TO-MOVE
Essential €6,99 + Add
SCALASOL®
TO-PREPARE
Optional
€7,99 + Add
Technical Specifications
| |
Visible light transmission (VLT) |
93% |
 |
| |
Visible light rejection (VLR) |
7% |
|
| |
* The light measurements (VLT & VLR) were performed using laboratory equipment and are based on monochromatic light. However, it is important to emphasise that these results should be interpreted differently in practical use. Therefore, below we provide a realistic indication of light transmission in practical applications on a bright, sunlit summer day.
|
|
| |
Visible Light Transmission (93% VLT) indication |
|
Bright, sunlit summer day |
|
|
Average bright daylight |
|
|
Daylight on an overcast summer day |
|
|
Fully overcast winter day |
|
|
Twilight |
|
| |
Reflection of external visible light |
9% |
|
| |
Reflection of internal visible light |
9% |
|
| |
Reduction of Ultraviolet (UV) |
99% |
|
| |
Transmission of Ultraviolet (UV) |
1% |
|
| |
Reduction of infrared radiation |
82% |
|
| |
Transmission of infrared radiation |
18% |
|
| |
Solar energy reflection |
10% |
|
| |
Solar energy absorption |
8% |
|
| |
Solar energy transmission |
82% |
|
| |
Total solar energy rejected |
17% |
|
| |
Single glazing |
|
|
Exterior side |
| |
Double glazing |
|
|
Exterior side |
| |
Tempered glass |
|
|
Exterior side |
| |
Tinted glass |
|
|
Exterior side |
| |
Laminated glass |
|
|
Exterior side |
| |
Gas-Filled Double glazing - Low E |
|
|
Exterior side |
| |
Triple glazing |
|
|
Exterior side |
| |
Patterned glass / Textured glass |
|
|
Not suitable |
| |
Plexiglass / Acrylic glass |
|
|
Not suitable |
| |
Polycarbonate / Multiwall sheet |
|
|
Not suitable |
| |
Colour: Crystal-clear transparency |
| |
Adhesion: Self-adhesive (with glue layer) |
| |
Scratch-resistant surface & easy to clean |
| |
Application: Exterior side of the glass (outdoor) |
| |
Warranty & Expected Lifespan |
| |
Shipping Insurance: Fully insured door-to-door transport – at no extra cost |
| |
Manufacturer’s Warranty: 2 years for vertical installation and 1 year for horizontal installation |
| |
Expected Lifespan: 8–10 years for vertical installation and 3–5 years for horizontal installation |
| |
* The indicated lifespan is an estimate and may vary depending on the specific situation and conditions. Factors such as sun exposure, ventilation, angle of installation, condition of the glass, maintenance and cleaning, and especially the method of application can all influence the lifespan. If the window film is not applied cQS4Eectly, its lifespan may be significantly reduced.
|
|
|
The information on this page is for reference only and not legally binding. SCALASOL® reserves the right to modify the composition of its products at any time. Please refer to our warranty terms and general conditions for more information.
|
