Scalasol® Fall-through protection Window Film | QS4 | Transparent
Fall-through protection Window Film | QS4 | Transparent
€31,00
Loading..
Scalasol®

Fall-through protection Window Film | QS4 | Transparent

  • Fall-through protection
  • 2B2 DIN EN 12600 Certified
  • Interior assembly
In stock
€31,00
  • High quality window film
  • 14 days reflection period
  • Delivery time 3-5 working days
  • More information? Neem contact met ons op
Product description

SCALASOL® Safety Window Film QS4 for interior application


Pros and cons

  • QS4 Pro icon 1QS4 safety film is officially certified (P2A / DIN EN 12600) by MPA-NRW in Germany
  • QS4 Pro icon 2It is not visible on the glass, because QS4 film is transparent
  • QS4 Pro icon 3QS4 is frequently used in the food industry and in daycare centers
  • QS4 Pro icon 4The glass is held together when broken, so there is no danger of shards flying around
  • QS4 Pro icon 5Easy to apply yourself using our recommended tools
  • QS4 Con icon 1Barely blocks infrared radiation (heat transfer)
  • QS4 Con icon 2Not suitable for textured glass, such as patterned or wired glass



> Order a sample of the QS4


Description QS4


Short description

The transparent fall-through protection window film is the ideal solution to prevent or reduce injuries in the event of an impact on the glass, for example due to falling or colliding. Rigid anti shatter glass film holds the glass together if the pane is cracked, so no glass shards come loose. In other words, safety film is extremely suitable for the food industry, because splinters of broken glass will never be scattered around. It also means that this kind of shatterproof film for windows is popular in day-care centres, schools, club canteens and other areas in which injuries could be caused if a glass pane is broken. This film has a thickness of 123 microns, so it is easy to apply to the glass yourself. The film is not just a security solution, it also blocks 99% of the harmful UV radiation in sunlight that enters your home through the window. In other words, it prevents your furnishings and household goods from fading.

Application
This anti shatter glass film is transparent and consequently does not change the visibility or amount of daylight, either from inside or outside. The film does not alter the architectural features of a building, so this film can be used in historic or listed buildings. Another advantage is that this film blocks out harmful UV rays, so it will stop your furnishings and furniture from fading. Because the fall protection window film complies with the requirements of standard EN12600 (Body Impact Resistance), your existing glass becomes significantly safer after the safety film is applied, helping to prevent injuries or the release of loose shards. Our shatter proof film for windows is formally classified in the 2B2 DIN EN 12600 class, certification issued by the testing laboratory for safety glass at MPA-NRW. The official certification for our safety window film can be found at the bottom of this page. QS4 film protects your surroundings from injury caused by glass shards. In addition, QS4 film ensures that your manufacturing line does not need to shut down if glass is broken in a food production hall.

The QS4 safety film provides additional protection against injury. SCALASOL® can never be held liable for glass breakage, personal injury, or any resulting costs.

  • QS4 Note icon 1 Regulations regarding safety glass
  • In public buildings such as shops, schools, or offices, the use of break-resistant glass or safety film is often required. In particular, glass surfaces below a height of 1 meter as well as glass doors must be equipped in a way that prevents injuries in the event of glass breakage. The applicable standard in this context is the European norm EN 12600, which classifies the impact resistance of glass.


Order QS4 window film cut-to-size, in a standard size or as a full roll


Various options
Thanks to our unique cut-to-size module, you can order QS4 film cut-to-size. You will find that option under the tab 'Cut-to-size'. You can order QS4 to your exact measurements, down to the last millimetre. However, if you prefer to order QS4 in a standard size, you will find the options under the tab 'Standard size'. If you are working on a large project and would like to order a whole role of QS4 film, go to the tab 'Full roll'. The tabs are on this product page.


Application


Preparation
Before applying the QS4, you must carry out the necessary preparations. The glass should be thoroughly cleaned using SCALASOL® TO-PREPARE and the SCALASOL® glass scraper.

Application on the inside of the glass
The QS4 is applied to the interior side of the window. It is suitable for all types of flat glass, including laminated safety glass, Low-E glass, and triple glazing.

Application difficulty level

  • QS4 Application icon 1Very easy
  • QS4 Application icon 2Easy
  • QS4 Application icon 3 Moderate
  • QS4 Application icon 4 Difficult



> Download application instructions


Required Tools


The QS4 can be easily applied by yourself using our application tools. The SCALASOL® Felt Squeegee and the SCALASOL® TO-MOVE water additive are essential for a perfect application of the QS4. Before applying the window film, the glass must be thoroughly cleaned. For this, you can use our glass cleaner SCALASOL® TO-PREPARE.

SCALASOL® Felt Squeegee SCALASOL®

Felt Squeegee

Essential €6,99 + Add
Scalasol® TO-MOVE SCALASOL®

TO-MOVE

Essential €6,99 + Add
Scalasol® TO-PREPARE SCALASOL®

TO-PREPARE

Optional
€7,99 + Add


Technical Specifications

  Light
  Visible light transmission (VLT) 90% QS4 Data Bar VLT
  Visible light rejection (VLR) 10% QS4 Data Bar VLR

* The light measurements (VLT & VLR) were performed using laboratory equipment and are based on monochromatic light. However, it is important to emphasise that these results should be interpreted differently in practical use. Therefore, below we provide a realistic indication of light transmission in practical applications on a bright, sunlit summer day.


  Visible Light Transmission (90% VLT) indication
QS4 VLT indication Icon 1 Bright, sunlit summer day QS4 Data Bar VLT indication 1
QS4 VLT indication Icon 2 Average bright daylight QS4 Data Bar VLT indication 2
QS4 VLT indication Icon 3 Daylight on an overcast summer day QS4 Data Bar VLT indication 3
QS4 VLT indication Icon 4 Fully overcast winter day QS4 Data Bar VLT indication 4
QS4 VLT indication Icon 5 Twilight QS4 Data Bar VLT indication 5
QS4 VLT indication Icon 6 Blackout darkness QS4 Data Bar VLT indication 6data bar



  Reflection
  Reflection of external visible light 7% QS4 Data Bar Reflection 1
  Reflection of internal visible light 4% QS4 Data Bar Reflection 2



  Ultraviolet & Radiation
  Reduction of Ultraviolet (UV)  99% QS4 Data Bar IR Rays 1
  Transmission of Ultraviolet (UV) 1% QS4 Data Bar IR Rays 2
  Reduction of infrared radiation 82% QS4 Data Bar IR Rays 1
  Transmission of infrared radiation 18% QS4 Data Bar IR Rays 2



  Solar Heat Energy
  Solar energy reflection 9% QS4 Data Bar Solar energy reflection
  Solar energy absorption 8% QS4 Data Bar Solar energy absorption
  Solar energy transmission 83% QS4 Data Bar Solar energy transmission
  Total solar energy rejected 16% QS4 Data Bar Solar energy rejected



  Application
  Single glazing QS4 Check Icon Single Glazing   Interior side
  Double glazing QS4 Check Icon Double Glazing   Interior side
  Tempered glass QS4 Check Icon Tempered glass   Interior side
  Tinted glass QS4 Check Icon Tinted glass   Interior side
  Laminated glass QS4 Check Icon Laminated glass   Interior side
  Gas-Filled Double glazing - Low E QS4 Check Icon Low-E glass   Interior side
  Triple glazing QS4 Check Icon Triple glazing   Interior side
  Patterned glass / Textured glass QS4 Check Icon Patterned glass   Not suitable
  Plexiglass / Acrylic glass QS4 Check Icon Plexiglass   Not suitable
  Polycarbonate / Multiwall sheet QS4 Check Icon Polycarbonate   Not suitable



  Properties
  Colour: Crystal-clear transparency
  Adhesion: Self-adhesive (with glue layer)

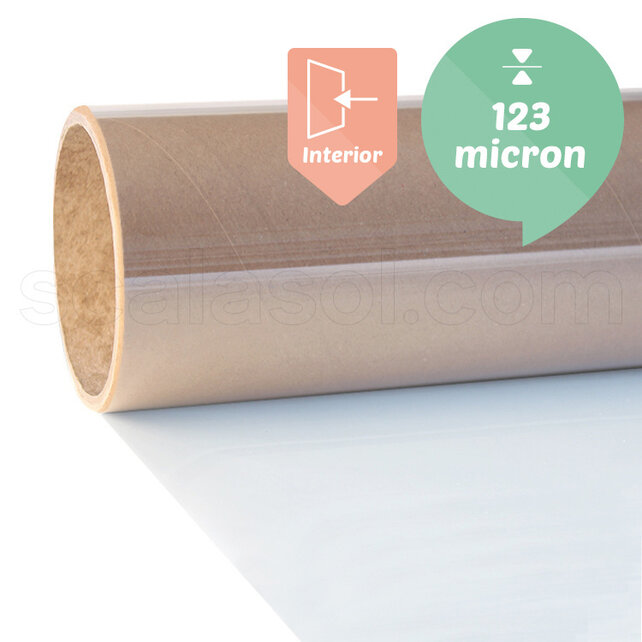

  Thickness: 123 micron
  Scratch-resistant surface & easy to clean
  Composition: PET
  Application: Interior side of the glass (indoor)



  Warranty & Expected Lifespan
  Installation Guarantee: Scalasol® InstallSure - Standard included
  Shipping Insurance: Fully insured door-to-door transport – at no extra cost
  Manufacturer’s Warranty: 2 years for vertical installation and 1 year for horizontal installation
  Expected Lifespan: 10–12 years for vertical installation and 6–8 years for horizontal installation

* The indicated lifespan is an estimate and may vary depending on the specific situation and conditions. Factors such as sun exposure, ventilation, angle of installation, condition of the glass, maintenance and cleaning, and especially the method of application can all influence the lifespan. If the window film is not applied cQS4ectly, its lifespan may be significantly reduced.




QS4 Warranty Terms PDF Download Icon   Warranty Terms
Click here for the warranty terms of the QS4

QS4 InstallSure Guarantee icon   Scalasol® InstallSure Guarantee
More information about the window film installation guarantee




The information on this page is for reference only and not legally binding. SCALASOL® reserves the right to modify the composition of its products at any time. Please refer to our warranty terms and general conditions for more information.
